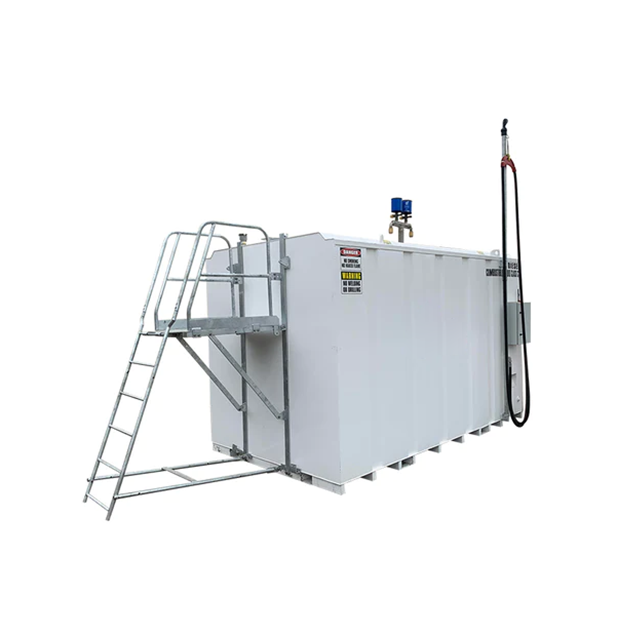

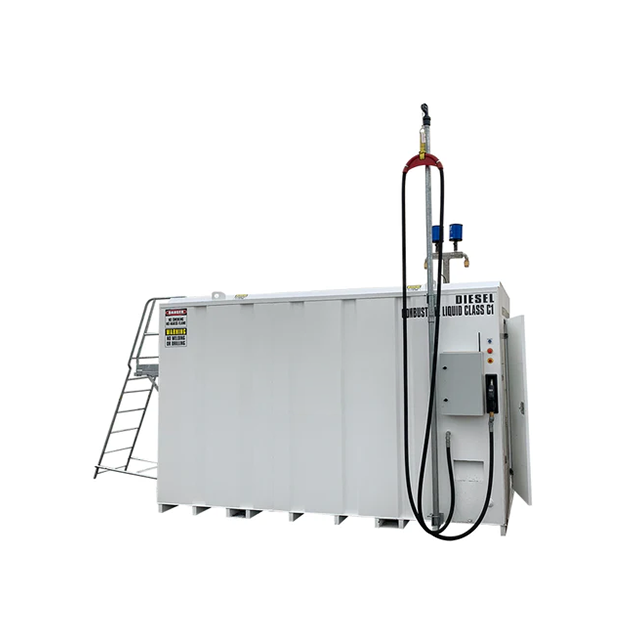

Features

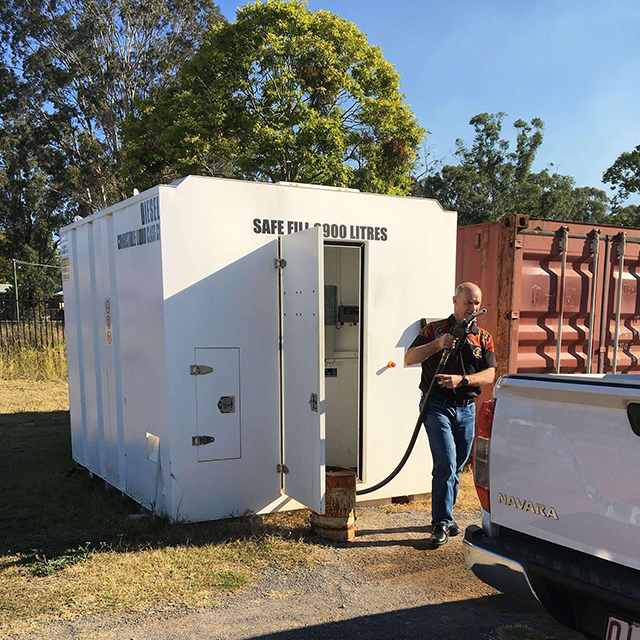

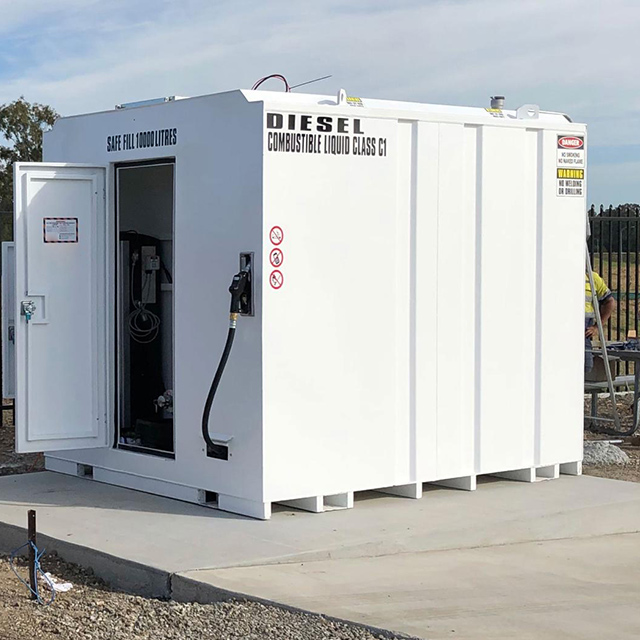

● PUMP BAY - Lockable full height pump bay housing for secure storage of dispensing equipment
● COMPLIANCE - Designed and built in accordance with AS1940, AS1692 and AS1657
● BUND - Galvanised grated bunded area with drain
● FILL POINT - DN50 (2") Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm
● SUCTION POINT - DN50 (2") Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.
● SPARE SUCTION - Spare DN25 (1") Suction Outlet
● SPARE FITTINGS - Numerous spare fittings on top of the tank for retrofitting of instrumentation or other devices
● MANWAY - 600mm dia manway with internal ladder
● DIPSTICK - Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting
● INTERSTITIAL DIP - Anodised aluninium interstitial dipstick with brass lockable dipstick cover fitting
● INTERSTITIAL VENT - Interstitial emergency vent
● VENT - Primary tank free air vent
● DECALS - Statutory safety decals
● FORKLIFT TYNES – 4 ways forklift tines have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site
● LIFTING LUGS - certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site. The lifting lugs are NOT certified to lift the tank with fuel.
● HOSE OUTLET - letterbox style secure weatherproof hose inlet / outlet assembly
● PAINT - Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2.5 Standard. 3 layers of Hempel coat at 200um thickness
Product Range:
CODE | CAPACITY | SAFE FILL LEVEL | LENGTH (mm) | WIDTH (mm) | HEIGHT (mm) | WEIGHT |
ST5.5 | 5,500L | 5,000L | 2950 | 1140 | 2550 | 1670KG |
ST11 | 11,000 | 10,000L | 2950 | 2300 | 2550 | 3100KG |
ST16 | 16,000L | 15,000L | 3950 | 2300 | 2550 | 3800KG |
ST22 | 22,000L | 20,000L | 4950 | 2300 | 2550 | 4500KG |
