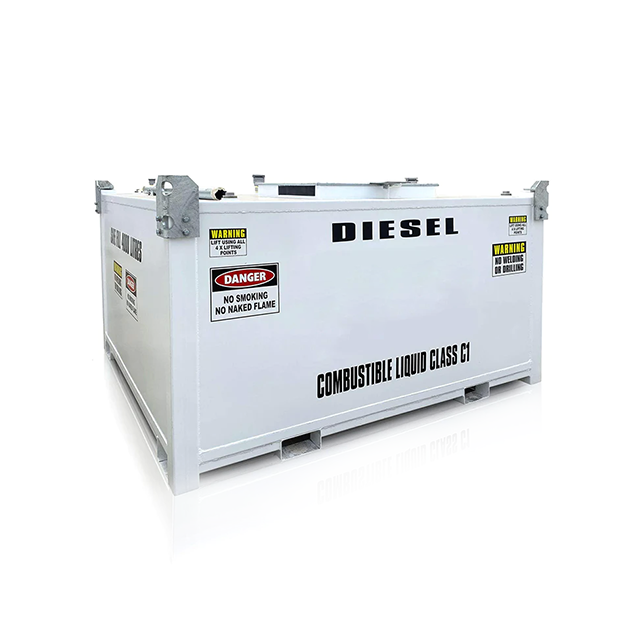

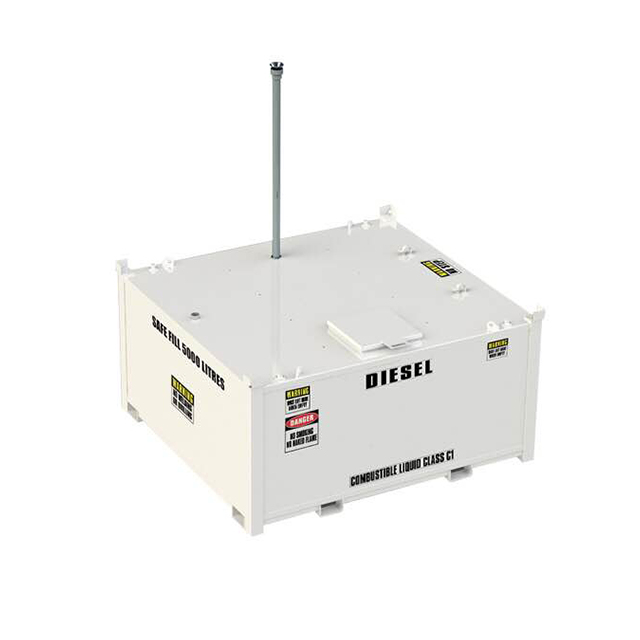

FC Cube Self Bunded Tank

Features

● Unique tank in tank design to UL142 / ULCS601 / AS1940, AS1692, AS1170, AS4100, AS1554.1 / BS799 / PPG2.

● Certified Crane Lifting Points (Up to and including FC6.6)

● Removable manway for ease of maintenance.

● The outer tank will hold volume of the inner tank’s capacity.

● UN31A/Y approved for the transport of Dangerous Goods by Road, Rail and Sea, Packaging Groups II & III. (FC0.66  - FC2.25)

● Lockable hatch lid with access for hoses, under hatch sockets and suction spears can operate with the hatch closed.

● Additional 50mm (2”) hose entry and exit sockets on top of tank.

● Secure under-hatch generator hose suction and return points, to accommodate up to 3 generators.

● 4 x way forklift pockets.

● Incremental dipstick.

● Stackable - 3-high empty and 2-high when full.

● Supplied with all required statutory decals.

● Movable when full (Up to and including FC6.6)

Comes With:

● 1 x 25mm (1”) Suction Spear

● 2 x 13mm (1/2”) Suction Spear

● 3 x 40mm (1 1/2”) Return Point

● 1 x Spare 80mm (3”) Socket

● 4 x Spare 50mm (2”) Socket Top of Tank

● 50mm (2”) Fill Point - Splash Fill Only

● Incremented Dip Stick (Select Models)

● Statutory Signage

● 4 Way Forklift Pockets

● Certified Lift Full Crane Lugs on Each Corner

● Finish Painted PETRO White Marine Specification

● Optional extra to pre-fit 1 x 50mm (2”) Overfill Valve

Product Range:
